Heavy-Duty PVC Coated Tarpaulin 550gsm Lightweight

1、What Is a 550gsm Lightweight Heavy-Duty PVC Coated Tarpaulin?

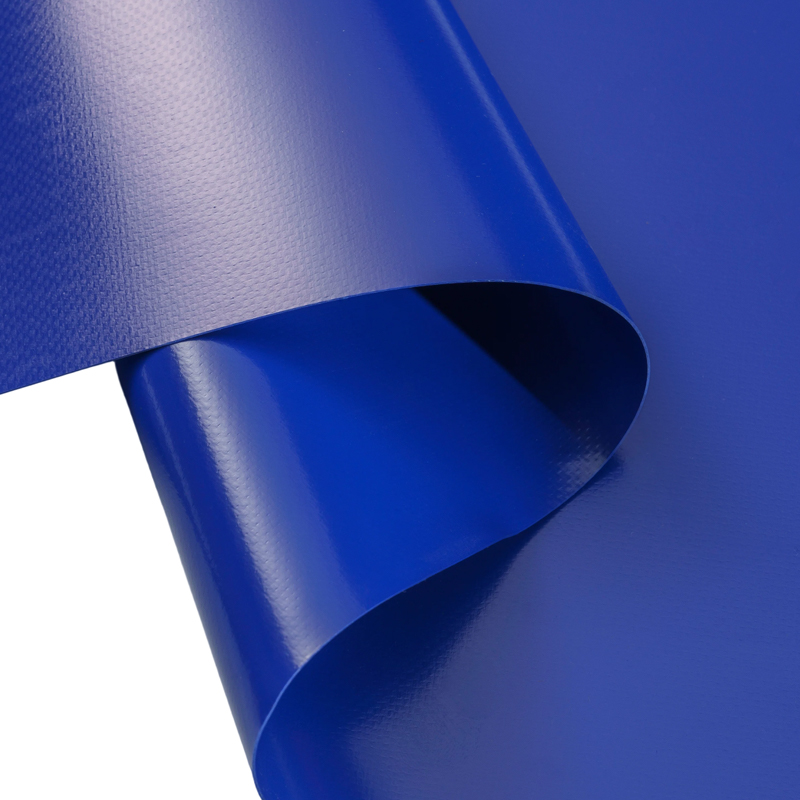

The phrase sounds like a contradiction, so it helps to define it. A Heavy-Duty PVC Coated Tarpaulin 550gsm Lightweight is a polyester base cloth, usually 1000 denier, coated on both sides with PVC to a finished weight of about 550 grams per square meter. The word heavy-duty refers to the strong yarn and the coating build. The word lightweight refers to its position in the weight range, because many industrial tarpaulins run from 650 to 900gsm and above.

This position gives the fabric a useful balance. It keeps the tensile and tear behavior of a 1000D yarn, while staying lighter to carry, fold, and install than thicker grades. Anhui Kingtex Material Technology Co., Ltd. produces PVC tarpaulins, knife-coated fabrics, and PVC inflatable fabrics, so this grade belongs to a broader range of coated textiles made on the same coating and lamination lines.

2、Does Lighter Mean Weaker?

(1) Where the Strength Comes From

Most of the mechanical strength of a coated tarpaulin comes from the polyester scrim, not from the PVC. A rough calculation shows why. In a 1000D construction with 18 yarns per inch in each direction, the yarns alone add up to roughly 160 to 170 grams per square meter. That means the base cloth makes up around 30 percent of a 550gsm fabric, and the PVC makes up the remaining 70 percent. Going from 550gsm to 750gsm with the same yarn mainly adds coating, not strength.

(2) What Extra Coating Adds

A thicker coating adds abrasion margin, a deeper surface for printing and lacquer, and more mass for damping flutter. These are real benefits for products used in rough or permanent settings. For covers and curtains that are handled often, the lower mass of a 550gsm fabric can be the more practical choice.

The stacked bar splits the finished weight into two parts. The dark segment on the left represents the 1000D polyester base cloth, which carries tensile load. The light segment on the right represents the PVC coating, which seals the cloth and protects the yarns. The split is an estimate based on the yarn count and denier, and real rolls vary with coating build and cloth finish. Reading the bar this way explains why two fabrics with the same yarn but different weights can have similar breaking strength. It also shows why buyers should ask for tensile and tear data rather than judging a fabric only by its weight.

3、How Is the Fabric Made?

Production follows a sequence in which each step affects the next. Kingtex runs cold-lamination, hot-lamination, and coating processes, along with testing instruments for checking the finished roll, which allows these steps to be kept under one roof.

1. Yarn and weaving: high-tenacity polyester is woven into an open scrim with an even yarn count.
2. Pre-treatment: the scrim is prepared so the coating can grip the yarns.
3. Coating or lamination: PVC paste is spread by knife, or PVC films are bonded to the scrim under heat and pressure.
4. Curing: heat sets the PVC and bonds it to the cloth.
5. Surface treatment: a lacquer or embossed finish is added where required.
6. Inspection and rolling: weight, width, and surface are checked before rolls are packed.

Knife coating spreads paste in a controlled layer and gives a dense, even surface. Lamination bonds pre-formed films and gives consistent thickness. Both routes can reach a 550gsm finished weight, and the choice depends on the surface and handling behavior required for the product.

4、How Much Does the Weight Class Matter in Practice?

Weight affects labor, transport, and installation. A simple calculation makes the effect visible: a 50 meter roll that is 2 meters wide covers 100 square meters. At 550gsm that roll weighs about 55 kilograms, before the core and packing.

The column chart converts weight classes into the mass of one roll, which is easier to picture than grams per square meter. The 550gsm roll, shown in dark green, weighs about 55 kilograms, while the 900gsm roll weighs about 90 kilograms. The values come from simple multiplication of weight by area and leave out cores and packaging. A difference of 35 kilograms per roll matters when crews lift, unroll, and position fabric by hand. It also affects container loading and freight planning for large projects. These figures help buyers weigh handling convenience against the extra abrasion margin of heavier grades.

5、Where Does the 550gsm Grade Fit Best?

(1) Truck and Trailer Covers

Cover sheets are folded and thrown often, so lower mass helps drivers and loaders. The 1000D base handles wind loading and cord tension, and the PVC surface sheds rain and road spray.

(2) Awnings and Canopies

Overhead structures benefit from lighter fabric because the frame carries less dead load. A lacquered or printed surface supports signage and color needs.

(3) Protective Covers for Equipment and Inflatables

Machine covers, pallet covers, and protective sleeves need a fabric that wraps easily and resists moisture. Lighter grades around 500 to 600gsm are also used in flexible covers and some inflatable items, while heavier inflatable duty is handled by grades such as a 650gsm heavy-duty coated fabric for inflatables.

(4) Tent Flysheets and Temporary Shelters

Flysheets and wall panels for temporary shelters need rain protection without excess bulk. Weldable seams help keep water out at panel joints.

The matrix shows how five common uses relate to four weight classes, with darker circles marking a stronger fit. The 550gsm column is dark in every row, which reflects its range across handled and overhead products. Lighter fabric at 440gsm suits covers that need low mass, while 750gsm moves toward uses that need more abrasion margin. The shading is indicative and based on common usage patterns, not on laboratory ranking. A project with unusual loads, sharp contact, or permanent installation should be reviewed individually. Sample trials in the real environment remain the most reliable check.

6、How Does 550gsm Compare with a Heavier Grade?

The radar chart compares a 550gsm fabric with a 750gsm fabric across five attributes. The green shape for 550gsm extends further on flexibility, easy handling, and fold size. The orange shape for 750gsm extends further on abrasion margin and load capacity, because extra coating adds protection and stiffness. The two shapes cross, which shows that neither grade wins on every point. Scores are relative and meant for planning, not for rating a specific roll. A buyer who values portability will lean toward the green profile, and a buyer who values wear margin will lean toward the orange one.

7、What Should Buyers Check Before Ordering?

• Base cloth: confirm denier and yarn count, such as 1000D with 18 x 18 or 20 x 20 yarns per inch.
• Tensile and tear data: request test results for the specific construction.
• Coating method: decide between knife-coated and laminated surfaces.
• Surface finish: choose glossy, matte, or lacquered, and confirm printability if needed.
• Additives: specify ultraviolet stabilizer, anti-mildew, or flame-retardant options if the use requires them.
• Roll format: agree on width, length, and core type to match cutting plans.

Buyers who work with a PVC tarpaulin manufacturer able to supply knife-coated, laminated, and mesh fabrics in the same range find it easier to compare options side by side. Kingtex invites customers to visit its production site for tours and business discussions, where samples and technical questions can be reviewed in person.

8、How Should the Fabric Be Cared For?

(1) Cleaning

Wash with water and a mild soap using a soft brush. Rinse thoroughly and let the fabric dry completely before folding. Avoid harsh solvents, which can attack the coating.

(2) Fitting and Tension

Use reinforced eyelets or hems at tie points, and spread tension over several points. Avoid dragging the fabric over sharp edges and fit corner protectors where cords run over frames.

(3) Inspection and Repair

Check seams, hems, and eyelets on a regular schedule. Small cuts can be closed with compatible PVC patches and adhesive on a clean, dry surface, with rounded patch corners.

(4) Storage

Keep the fabric clean and dry in a cool, ventilated place away from direct sunlight and sharp objects. Roll or fold loosely and change fold lines between storage periods.

9、Frequently Asked Questions

(1) What does 550gsm mean?

It is the finished weight of the fabric in grams per square meter, covering both the polyester base cloth and the PVC coating.

(2) Why is a 1000D fabric called lightweight at 550gsm?

The term compares it with heavier tarpaulins that run from 650gsm to 900gsm and above. The yarn is still heavy-duty, while the coating build is lighter.

(3) Which products suit this grade?

Common uses include truck covers, awnings, equipment covers, tent flysheets, and protective sleeves.

(4) Can the fabric be welded or printed?

PVC coated fabric can be joined by high-frequency or hot-air welding, and many surfaces accept printing. Test samples help confirm settings for each project.

(5) Can colors and finishes be adjusted?

Color, gloss level, lacquer, and functional additives can be discussed with Anhui Kingtex Material Technology Co., Ltd. during sampling.

(6) How do I choose between 550gsm and a heavier grade?

Start with handling frequency and contact conditions. Frequent handling favors the lighter grade, while permanent or abrasive settings favor a heavier one.

10、Summary

A Heavy-Duty PVC Coated Tarpaulin 550gsm Lightweight keeps the strength of a 1000D polyester scrim while cutting the mass that makes heavier tarpaulins harder to carry and install. Its weight class suits covers, awnings, tent panels, and protective sleeves where handling is frequent. Comparing roll mass, application fit, and surface options helps buyers match the grade to the job. Anhui Kingtex Material Technology Co., Ltd. welcomes project teams to request samples and discuss specifications for lightweight and heavy-duty PVC tarpaulin needs.
