Abrasion-Resistant PVC Coated Tarpaulin 650gsm Medium Weight

1、Why Abrasion Is the Main Wear Factor for Cover Materials

Covers, curtains, and protective sheets rarely fail because the fabric is too weak to hold a load. More often, the surface wears down where the material rubs against frames, ropes, cargo, ground, or neighboring panels. Once the coating thins in those spots, water and ultraviolet light reach the yarns, and the cover ages faster in those areas than anywhere else.

An Abrasion-Resistant PVC Coated Tarpaulin 650gsm Medium Weight is built to slow that process. It pairs a high-tenacity polyester scrim with a PVC coating applied to a finished weight of about 650 grams per square meter, with a surface that can be lacquered to resist friction and dirt. The medium weight keeps the material practical to handle, while giving the coating enough thickness to act as a wear layer.

Anhui Kingtex Material Technology Co., Ltd. develops and produces PVC tarpaulins, knife-coated fabrics, and mesh fabrics, and supplies cover materials for transport, storage, and temporary structures. This article looks at where wear happens, what in the construction resists it, how the 650gsm class compares with neighboring grades, and how users can extend service life through selection and care.

2、Where a Cover Wears First

Wear is not spread evenly. A few zones take most of the contact, and knowing them helps with both fabric selection and cover design.

The diagram shows a rectangular cover with its main contact zones marked. The four orange circles are the corners, where fabric bunches, folds, and drags against supports. The dashed orange outline marks the edges and hems, which rub against ropes, hooks, and adjacent panels. The two dark vertical bars represent frame members that press into the fabric whenever wind moves the cover. The white dashed line shows a habitual fold line, where repeated creasing stresses the coating. The open center of the panel sees the least contact, so most wear protection is needed around the perimeter and at supports.

The bar chart ranks the same zones by relative wear exposure on a hundred-point scale. Corners lead with an index of 90, followed by frame contact at 80 and edges and hems at 65. Fold lines sit at 50, and the open panel has the lowest value at 25. The index is indicative and meant to show a pattern, not to report measured wear. It explains why many covers fail at the perimeter while the center of the sheet still looks sound. Cover designers often respond by adding reinforcing patches, double hems, or corner protectors at the highest-ranked zones, and by choosing a coating thick enough to serve as a wear layer.

3、What in the Construction Resists Abrasion

(1) Coating Thickness

The PVC layer is the part that meets the rubbing surface, so its thickness sets how much material can be worn away before the scrim is exposed. At 650gsm there is more coating mass over the yarns than in lighter 500 to 550gsm grades, which gives a longer path before wear reaches the cloth.

(2) Compound Formulation

The PVC compound can be adjusted for surface hardness, flexibility, and stabilizers. A compound that is too soft marks easily, and one that is too hard can crack when folded. A balanced formulation keeps the surface durable while retaining the flexibility needed for repeated folding.

(3) Surface Lacquer

A lacquer topcoat gives a smoother, denser outer skin. It lowers friction against other surfaces, reduces dirt pickup, and makes cleaning easier. Dirt particles act like fine abrasive grit when trapped between a cover and its support, so a cleaner surface also reduces wear.

(4) Scrim Bonding

Good adhesion between coating and scrim keeps the wear layer attached under flexing. Kingtex runs coating, cold-lamination, and hot-lamination lines with testing equipment, so coating build and bonding can be matched to the cover material being produced.

The line chart compares how a lacquered surface and an unlacquered surface might hold their condition over repeated handling and rubbing. Both start at the same index of 100. The green line for the lacquered surface declines more slowly, because the denser skin resists marking and holds less dirt. The orange line for the unlacquered surface falls faster as surface scuffs and trapped particles accumulate. The values are indicative and illustrate a trend, so they are not test results for any specific roll. Users with strong cleanliness or wear demands can discuss lacquer options with the supplier during sampling.

4、Why 650gsm Is Called Medium Weight

Cover fabrics are commonly grouped into light grades near 500 to 600gsm, medium grades near 650 to 750gsm, and heavy grades from 800gsm upward. The 650gsm class sits at the entry of the medium band. It gives more wear margin than lightweight covers without the handling burden of the heaviest grades. A simple calculation shows the handling side: a roll 2 meters wide and 50 meters long holds 100 square meters, so at 650gsm the fabric mass is about 65 kilograms before core and packing.

The radar chart compares the 650gsm class with a 900gsm class on five attributes using relative scores. The green shape for 650gsm is even and balanced, with moderate scores on every axis. The orange shape for 900gsm stretches toward abrasion margin and tear resistance and pulls in on handling, foldability, and area per mass. This shows the central trade-off between wear margin and convenience. For permanent or heavily abraded installations the heavier profile may justify its added mass. For covers that are lifted, folded, and reused, the balanced profile often fits better. The scores are indicative and meant for early planning.

5、Wear Mechanisms and Practical Responses

6、Application Scenarios

(1) Truck Side Curtains and Trailer Covers

Curtains slide along rails and rub against loads, so abrasion at edges and frame contacts is constant. The medium weight allows drivers to operate curtains by hand, and the lacquered face sheds road dirt.

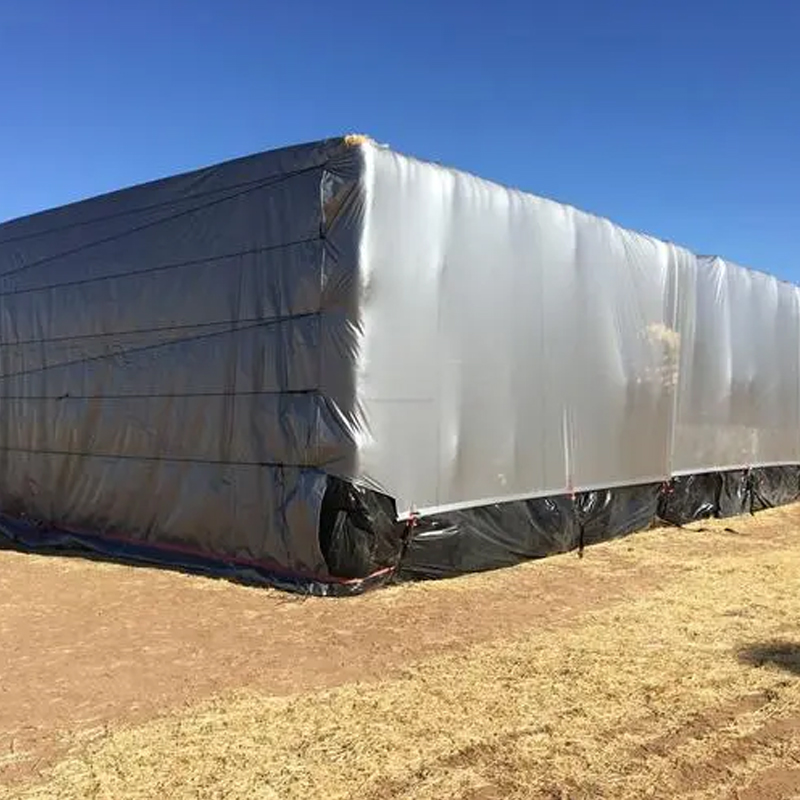

(2) Industrial and Warehouse Covers

Equipment covers and pallet covers are pulled on and off repeatedly, often across rough surfaces. Wear margin at corners extends the useful life of these covers.

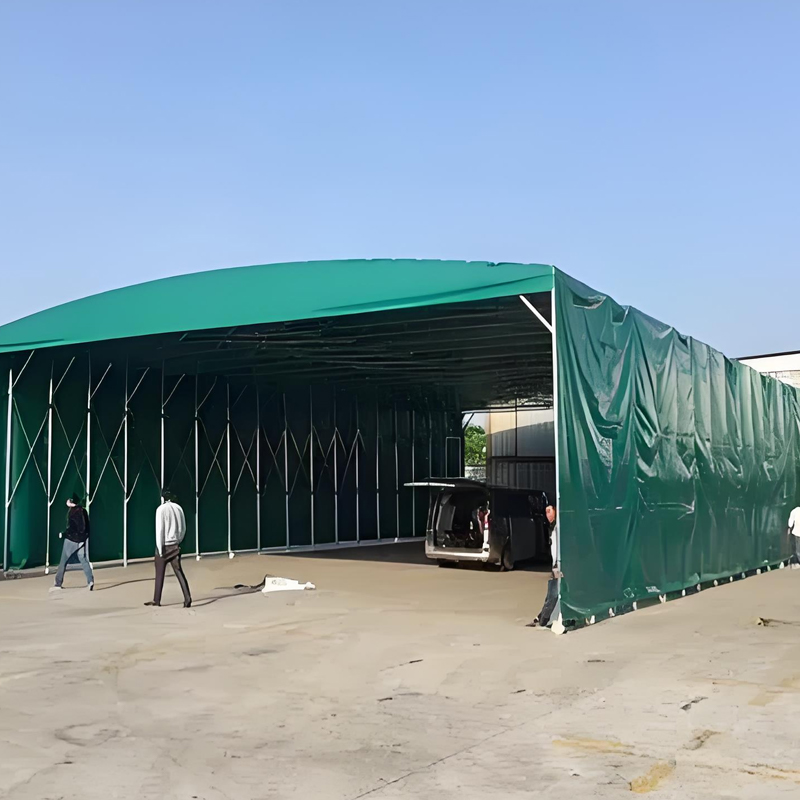

(3) Temporary Shelters and Site Enclosures

Wall and roof panels rub against scaffold tubes and ties. Weldable seams keep panels joined without sewing holes, and medium weight reduces the load on frames.

(4) Flexible Containment and Protective Liners

Ground sheets, bund liners, and protective wraps rest on uneven surfaces. A thicker coating gives margin against scuffing from stones and edges.

7、Selection Checklist

1. Map the contact zones on the cover and rank them by exposure.
2. Decide how often the cover will be handled, folded, or moved.
3. Choose a weight class, such as 650gsm, that balances wear margin and handling.
4. Specify the surface: lacquered for cleanliness, matte for low gloss.
5. Add functional options such as ultraviolet stabilizer or anti-mildew treatment where needed.
6. Test welds and hems on samples, then check wear after a trial period.

Working with a PVC tarpaulin manufacturer that handles coating, lamination, and testing in one facility simplifies this process, because wear questions can be traced back to specific production choices. Kingtex welcomes customers to visit its plant for tours and business discussions.

8、Care and Maintenance

(1) Keep the Surface Clean

Wash with clean water and a mild soap using a soft brush, then rinse and dry. Removing grit before it is trapped between layers protects the coating.

(2) Protect Contact Points

Fit padding or sleeves on sharp frame edges and use corner guards where cords pull. Spread tension over several tie points instead of one.

(3) Repair Early

Patch small scuffs and cuts with compatible PVC material before the scrim is exposed. Clean the area, round the patch corners, and press the patch firmly.

(4) Store Properly

Keep covers clean, dry, and out of direct sunlight, and vary fold lines between uses so the same crease is not stressed every time.

9、Frequently Asked Questions

(1) What makes a PVC tarpaulin abrasion-resistant?

Resistance depends on coating thickness, compound formulation, surface lacquer, and the bond between coating and scrim.

(2) What does 650gsm mean?

It is the finished weight in grams per square meter, including both the polyester base cloth and the PVC coating.

(3) Who uses medium weight tarpaulin?

Typical users include truck and trailer operators, warehouse teams, site contractors, and makers of temporary shelters and protective covers.

(4) Can the fabric be welded?

PVC coated fabric can be joined by high-frequency or hot-air welding. Trial seams on sample rolls help set suitable temperature and pressure.

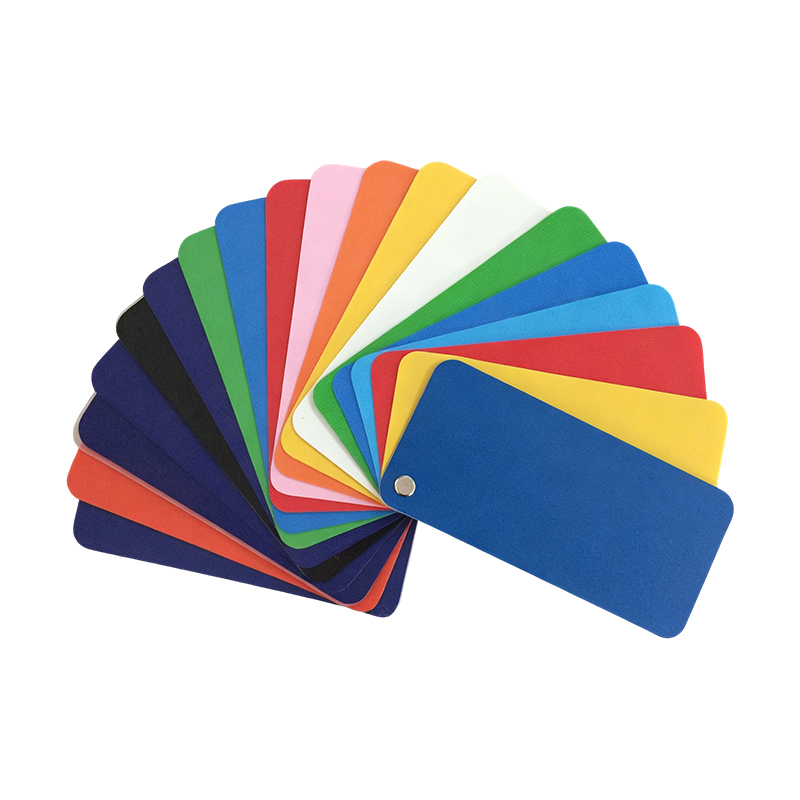

(5) Can colors and finishes be customized?

Color, gloss level, lacquer, and functional additives can be discussed with Anhui Kingtex Material Technology Co., Ltd. during sampling.

(6) How can service life be extended?

Keep the surface clean, pad sharp contact points, repair small damage early, and rotate fold lines during storage.

10、Summary

An Abrasion-Resistant PVC Coated Tarpaulin 650gsm Medium Weight addresses the way covers actually wear: at corners, frames, edges, and fold lines. Its coating build and optional lacquer provide a durable outer layer, and its weight class keeps handling manageable for repeated use. Matching the grade to contact zones, handling frequency, and surface needs leads to longer service from the same material. Anhui Kingtex Material Technology Co., Ltd. invites project teams to request samples and discuss specifications for PVC cover material.
