900gsm PVC Coated Truck Side Curtain Fabric
Product Overview

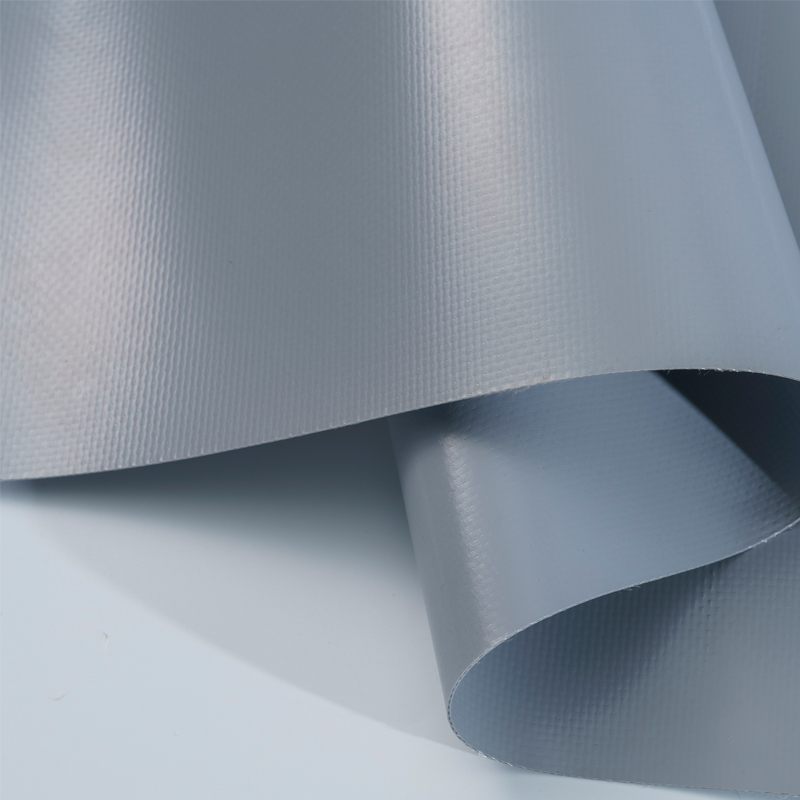

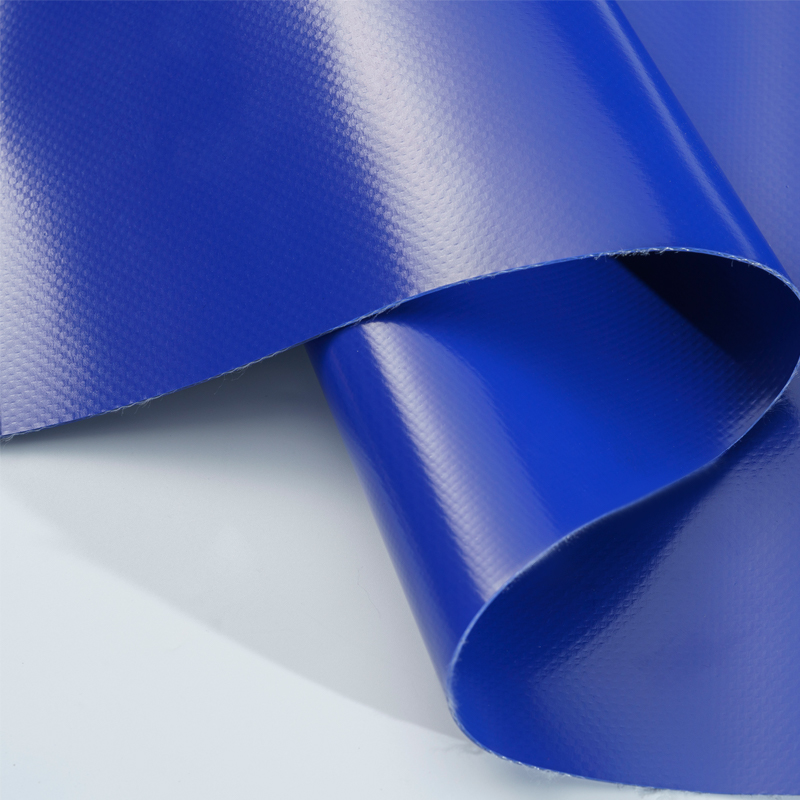

900gsm PVC Coated Truck Side Curtain Fabric is a heavy-duty coated fabric specially designed for truck side curtains, curtain-sider trailers, and commercial vehicle covering systems. Manufactured with 100% polyester support cloth and PVC coating on both sides, this fabric provides excellent tensile strength, tear resistance, waterproof performance, and long-term outdoor durability.
- Product Parameter
- Product Details
| Test Items | Unit | Measured Value | Measured Value |
| Support Cloth | -- | 100% Polyester | DIN 6000 |
| Type of Coating | -- | PVC coated on both sides | -- |
| Width | -- | UP TO 3.2m Common widths: 3 m |
( DIN EN ISO 2286-1) |
| Total Weight | g/m2 | 900 | DIN EN ISO 2286-2 |
| Yarn | D | 1000 X 1000 | DIN EN ISO 2060 |
| Specification | inch(plain weave) | 30 X 30panama | DIN EN 1049-2 |
| Tensile strength | N/5cm | Warp Direction 4200 | DIN 53354 |
| Transverse Direction 3800 | |||
| Tear strength | N/5cm | Warp Direction550 | DIN 53356 |
| Transverse Direction 500 | |||
| Adhesion Strength | N/5cm | 110 | ASTM D 751-2000 |
| Lacquer | Acrylic or PVDF | ||
| Flame Retardant | B1,B2,NFPA-701 |
Product Features
High-Strength Polyester Base Fabric: Made with 100% polyester support cloth and 1000D × 1000D yarn structure, providing excellent durability and dimensional stability.
Double-Sided PVC Coating: PVC coating on both sides enhances waterproof performance, abrasion resistance, and protection against outdoor environmental conditions.
Excellent Tensile & Tear Resistance: With high tensile strength and tear resistance, the fabric can withstand wind pressure, cargo movement, and repeated use in transportation applications.
Wide Width for Customized Applications: Available in widths up to 3.2m, suitable for large truck bodies, curtain sider trailers, and customized vehicle covering systems.
Weather-Resistant Performance: Provides reliable resistance against moisture, UV exposure, temperature changes, and outdoor aging for long service life.
Flame Retardant Options Available: Supports B1, B2, and NFPA 701 flame-retardant requirements for applications requiring enhanced safety performance.
Custom Surface Treatment Options: Available with acrylic or PVDF lacquer finishes to improve surface protection, appearance, and long-term durability.
Applications
The 900gsm PVC Coated Truck Side Curtain Fabric is widely used in:

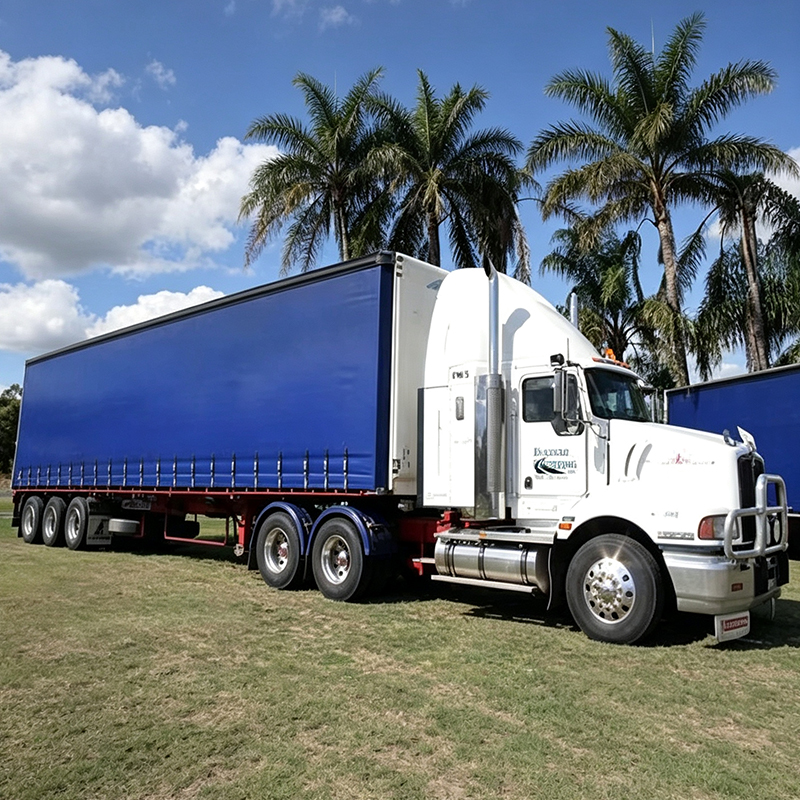

Curtain-side trucks
Curtain-side trailers
Semi-trailer side curtains
Cargo transportation covers
Logistics vehicle covers
Industrial protective covers
Commercial vehicle curtain systems
