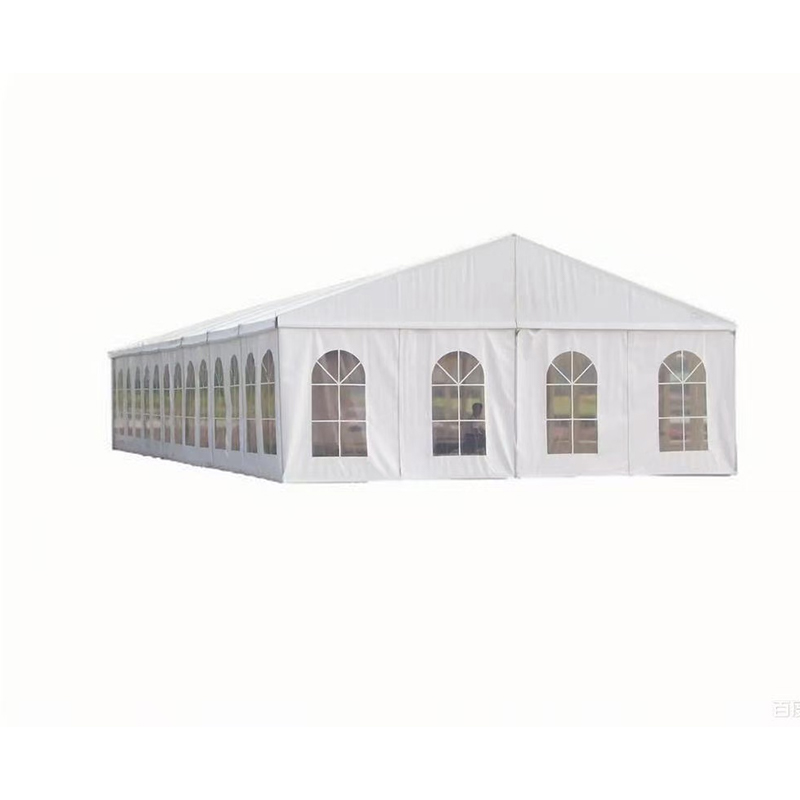

Heavy Duty Flame Retardant PVC Tent
Product Overview

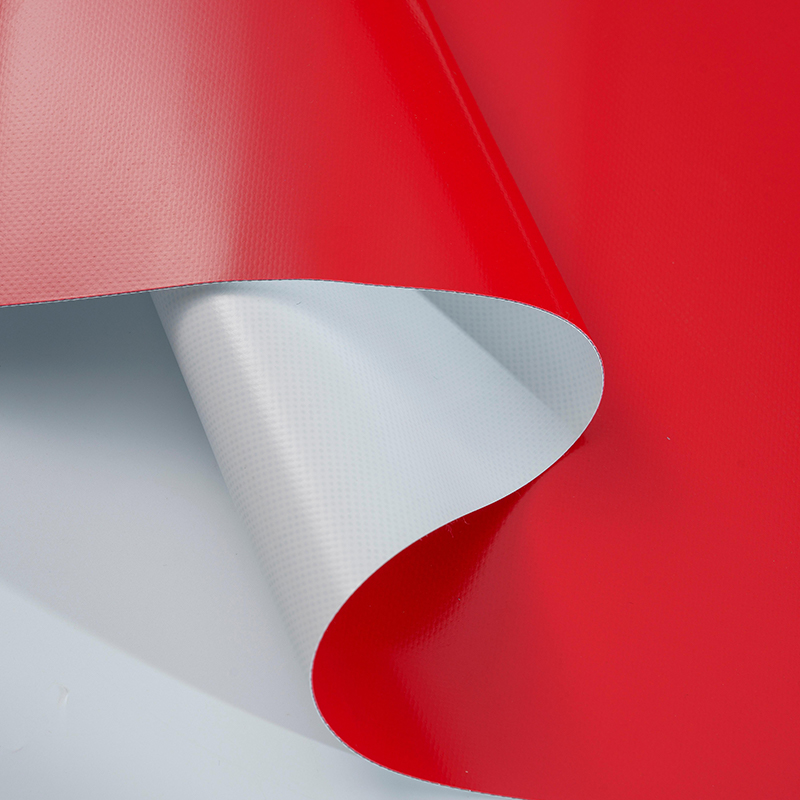

The Heavy Duty Flame Retardant PVC Tent is made of high-density polyester base fabric with double-sided PVC coating, providing excellent wear resistance, waterproofing, and flame-retardant performance. It is specially designed for high-strength outdoor use and industrial applications.
PREV: PVC Coated Tent Fabric Waterproof Flame Retardant
NEXT: Durable PVC Tent Fabric Acrylic Coated
- Product Parameter
- Product Details
| Heavy Duty Flame Retardant PVC Tent | |||
| Test Items | Unit | Measured Value | Test Method |
| Support Cloth | -- | 100% Polyester | DIN 6000 |
| Type of Coating | -- | PVC coated on both sides | -- |
| Width | -- | UP TO 3.2m | ( DIN EN ISO 2286-1) |
| Total Weight | g/m2 | 750 | DIN EN ISO 2286-2 |
| Yarn | D | 1000 X 1000 | DIN EN ISO 2060 |
| Specification | inch(plain weave) | 23 X 23 | DIN EN 1049-2 |
| Tensile strength | N/5cm | Warp 3000 | DIN 53354 |
| Weft 2950 | |||
| Tear strength | N/5cm | Warp 310 | DIN 53356 |
| Weft 290 | |||
| Adhesion Strength | N/5cm | 110 | ASTM D 751-2000 |
| Lacquer | Acrylic or PVDF | ||
| Flame Retardant | B1,B2,NFPA-701 B-S2,do | ||
Product Features
Material: 100% polyester fabric, high-density weave, higher strength
Coating Type: Double-sided PVC coating, durable and waterproof
Fabric Width: Up to 3.2 meters, suitable for large-area coverage
Weight: 750 g/m², thick and sturdy
Mechanical Performance:
Tensile Strength: Warp 3000 N/5cm, Weft 2950 N/5cm
Tear Strength: Warp 310 N/5cm, Weft 290 N/5cm
Adhesion: 110 N/5cm
Coating Options: Acrylic or PVDF, customizable as needed
Flame Retardant Performance: Compliant with B1, B2 grades and NFPA-701 B-S2 standard
Applications
Suitable for heavy-duty outdoor tents, industrial sunshades, protective tarpaulins, emergency rescue facilities, and scenarios requiring high fire and water resistance.
