Industrial Grade PVDF Architectural Membrane Fabric
Product Overview

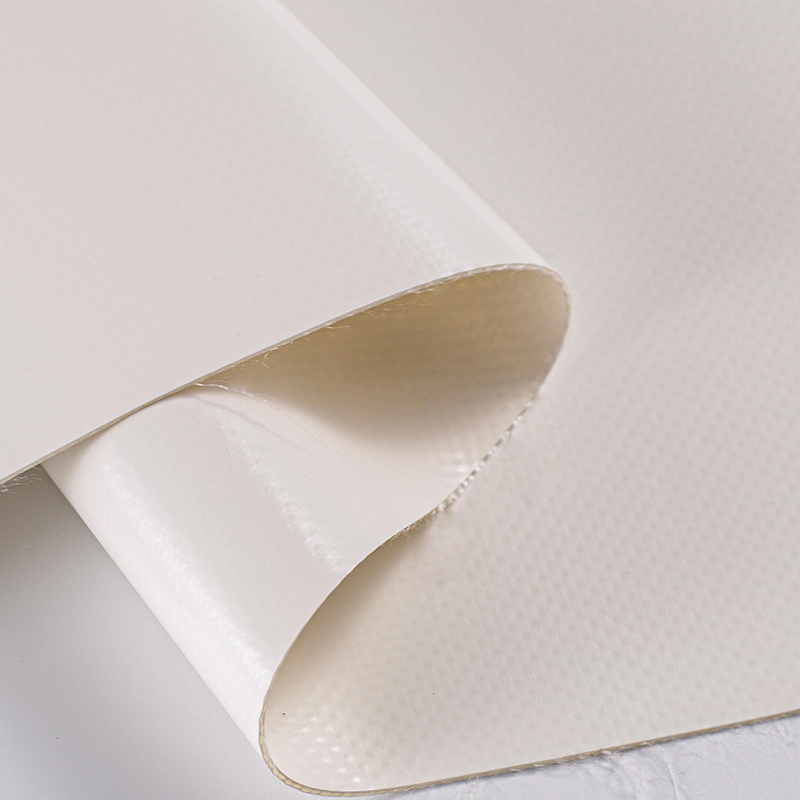

The JT-1300 Industrial Grade PVDF Architectural Membrane Fabric adopts double-sided PVC coating, with a high-density polyester filament base fabric (Polyester 1500×1500D/3032). The fabric has a weight of 1300 g/m², a thickness of approximately 1.0 mm, and a width of up to 3.2 meters. The surface undergoes PVDF + acrylic composite treatment, significantly enhancing weather resistance and anti-pollution performance, making it suitable for industrial and large-scale building applications.
- Product Parameter
- Product Details
| Project | Value | Unit | Test method |
| Coating Material | PVC coated on both sides | ∕ | ∕ |
| Base fabric | Polyester 1500*1500D/30*32(per inch) |
∕ | DIN EN6001 |
| Weight | 1300 | g/㎡ | DIN EN ISO 2286-2 |
| Thickness | 1.0±0.02 | mm | |
| Width | UP TO 3.2M | / | |
| Tensile Strenght | Warp 6500 | N/5cm | DIN EN ISO1421 DIN53354 |
| Weft 6400 | |||
| Tear Strenght | Warp 1000 | N | DIN53363 |
| Weft 980 | |||
| Adhesion Strength | ≥120 | N/5cm | DIN53357 |
| Threshold Temperature | -30~70 | ℃ | DIN EN 1876-1 |
| Surface Treatment | PVDF+Acrylic | ||
| Flame Retardancy | B1/B2/B3 | GB 8624-2012orDIN4102-1 | |
| Remarks: Non-weldable PVDF, acrylic surface treatment, anti-wicking, and anti-mildew treatments are optional. Custom solutions can be provided according to requirements. | |||
| ※ The above data are test results obtained in accordance with relevant standards, for reference only. Jingtai Company reserves the right of final interpretation. | |||
Main Features
Ultra-High Strength: Tensile strength in the warp direction is 6500 N/5cm, in the weft direction 6400 N/5cm; tear strength is 1000 N in the warp direction and 980 N in the weft direction, meeting the requirements of high-strength structures.
Firm Bonding: Peel strength ≥ 120 N/5cm, ensuring long-term stability between the coating and base fabric.
Wide Temperature Adaptation: Usable in environments ranging from -30°C to 70°C, suitable for various industrial conditions.
Optional Fire Performance: Fire rating up to B1/B2/B3, compliant with industrial safety standards.
Customizable Features: Options include non-weldable PVDF, anti-wicking, and anti-mold treatments to meet specific industrial requirements.
Applications

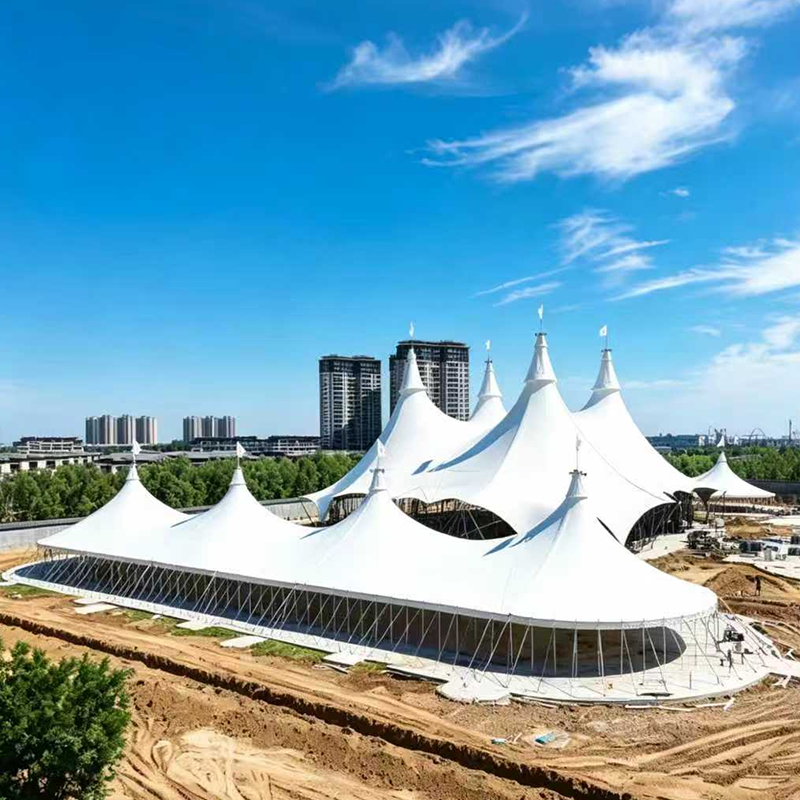

Roofs and membrane structures of large industrial plants
Industrial warehousing and logistics covering facilities

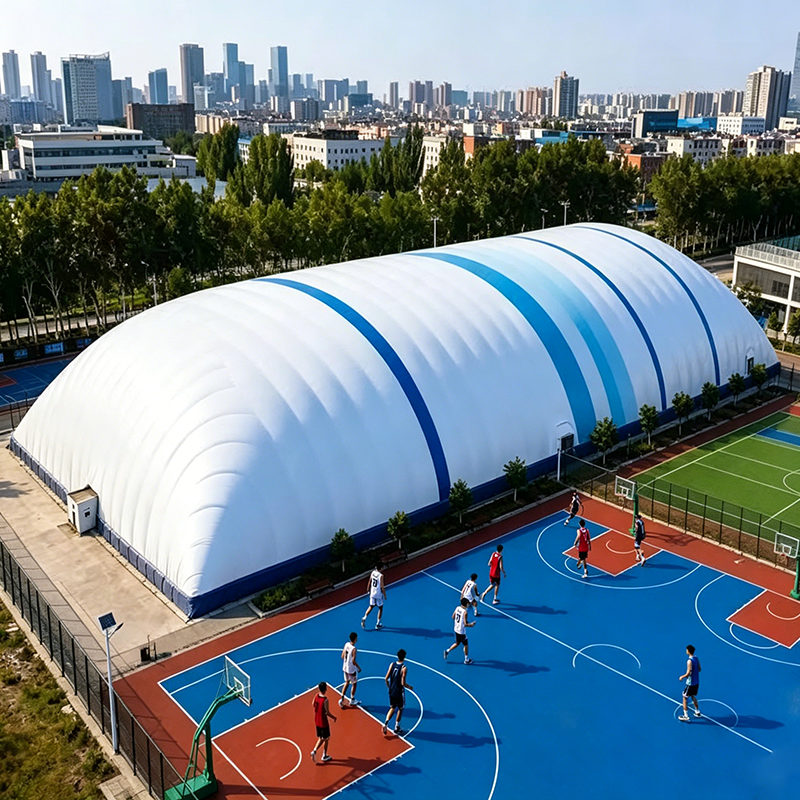

High-strength membrane structure buildings (e.g., factories, stadiums)
Rainproof, sunproof, and long-term outdoor shading facilities
