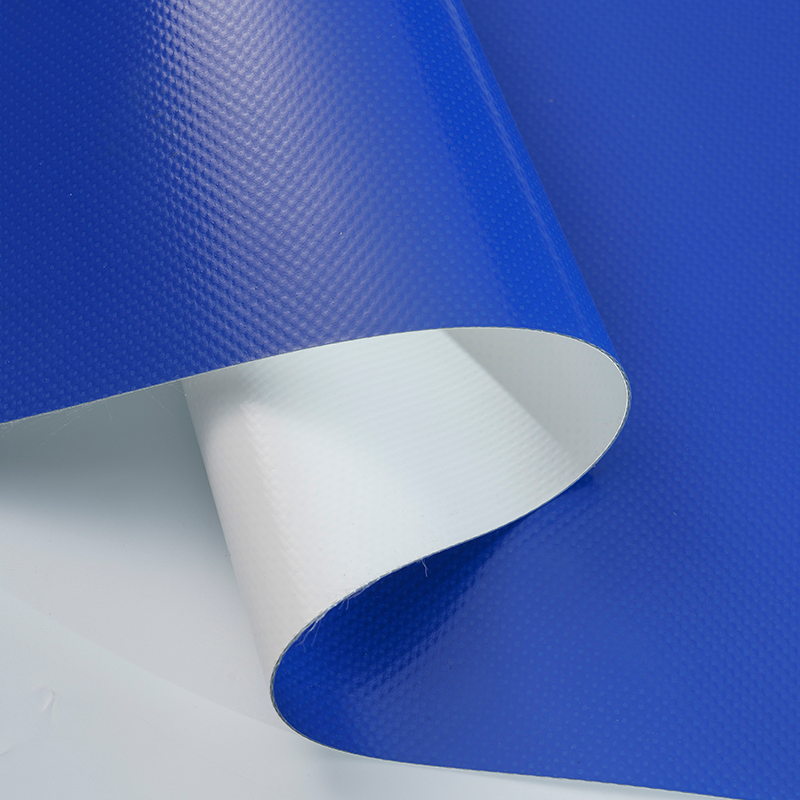

PVDF Coated PVC Architectural Membrane Fabric
Product Overview
The JT-1200 PVDF Coated PVC Architectural Membrane Fabric adopts double-sided PVC coating, with a high-strength polyester fiber base fabric (Polyester 1300×1300D/3032). The product has a weight of 1200 g/m², a thickness of approximately 0.92 mm, and a width of up to 3.2 meters. The surface treatment uses PVDF + acrylic coating, providing excellent weather resistance and anti-fouling performance.
- Product Parameter
- Product Details
| Project | Numerical values | Unit | Test methods |
| Coating Material | PVC coated on both sides | ∕ | ∕ |
| Base fabric | Polyester 1300*1300D/30*32(per inch) |
∕ | According to EN6001 |
| Weight | 1200 | g/㎡ | DIN EN ISO 2286-2 |
| Thickness | 0.92±0.02 | mm | |
| Width | UP TO 3.2M | / | |
| Tensile Strenght | 6000 | N/5cm | DIN EN ISO1421 DIN53354 |
| Latitude 5800 | |||
| Tear Strenght | 850 | N | DIN53363 |
| Latitude 800 | |||
| Adhesion Strength | ≥120 | N/5cm | DIN53357 |
| Threshold Temperature | -30~70 | ℃ | DIN EN 1876-1 |
| Surface Treatment | PVDF+Acrylic | ||
| Flame Retardancy | B1 Level / B2 Level / B3 Level | GB 8624-2012 or DIN4102-1 | |
| Note: Non-weldable PVDF, acrylic finish, anti-wicking, mildew resistant, etc., are available. Customization is possible upon request. | |||
| *The above data is based on testing according to relevant standards and is for reference only. The final interpretation right belongs to Jingtai Company. | |||
Product Features
High Strength and Tear Resistance: Tensile strength in the warp direction is 6000 N/5cm and in the weft direction is 5800 N/5cm. High tear strength ensures long-term safety and reliability.
Excellent Adhesion: The PVC and base fabric are firmly bonded, with a peel strength ≥ 120 N/5cm.
Temperature Resistance: Suitable for temperatures ranging from -30°C to 70°C, adaptable to various building environments.
Optional Fire Performance: Can achieve B1/B2/B3 grades to meet building fire safety requirements.
Good Surface Weather Resistance: The PVDF + acrylic coating enhances anti-fouling and UV resistance, extending service life.
Applications

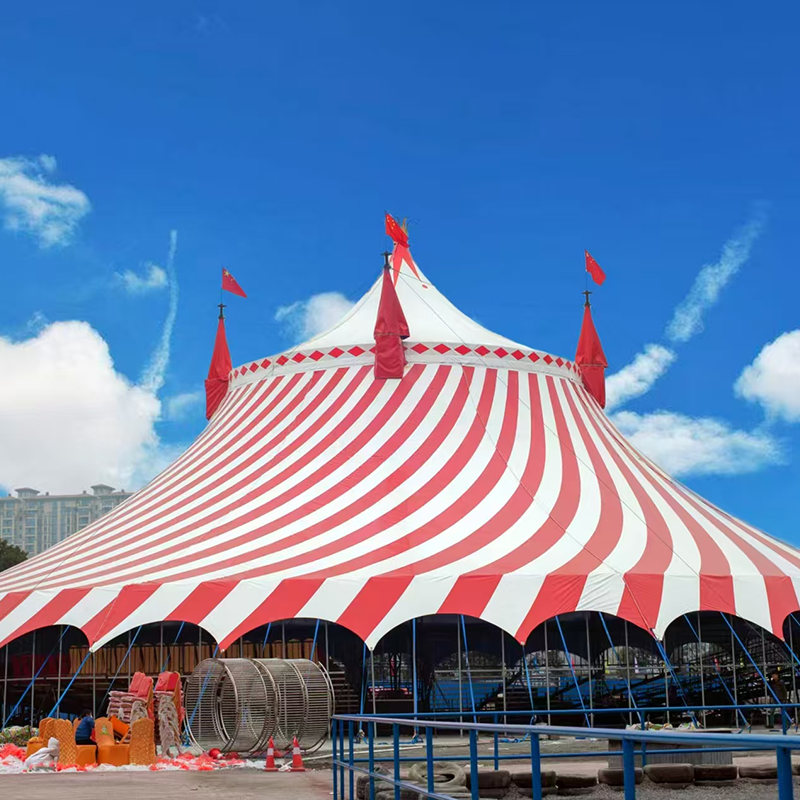

Membrane structure buildings (stadiums, exhibition halls, carports, etc.)
Temporary or permanent sunshades
Architectural façades and decorative membranes
Rainproof, windproof, and UV-resistant covering materials
