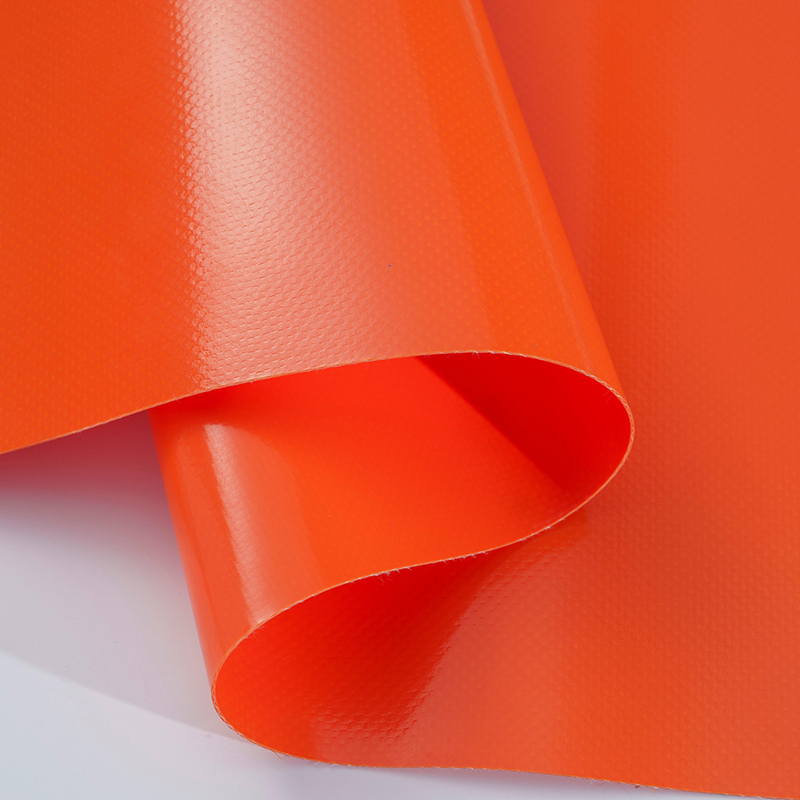

Reinforced PVC Tent Cloth Heavy Duty
Product Overview
The Reinforced PVC Tent Cloth Heavy Duty is made of high-density polyester base fabric with double-sided PVC coating, offering extremely high strength and wear resistance. It also provides excellent waterproof and flame-retardant performance, specially designed for load-bearing and long-term outdoor use.
- Product Parameter
- Product Details
| Reinforced PVC Tent Cloth Heavy Duty | |||
| Test Items | Unit | Measured Value | Test Method |
| Support Cloth | -- | 100% Polyester | DIN 6000 |
| Type of Coating | -- | PVC coated on both sides | -- |
| Width | -- | UP TO 3.2m | ( DIN EN ISO 2286-1) |
| Total Weight | g/m2 | 900 | DIN EN ISO 2286-2 |
| Yarn | D | 1000 X 1000 | DIN EN ISO 2060 |
| Specification | inch(plain weave) | 30 X 30panama | DIN EN 1049-2 |
| Tensile strength | N/5cm | Warp 4200 | DIN 53354 |
| Weft 3800 | |||
| Tear strength | N/5cm | Warp550 | DIN 53356 |
| Weft 500 | |||
| Adhesion Strength | N/5cm | 110 | ASTM D 751-2000 |
| Lacquer | Acrylic or PVDF | ||
| Flame Retardant | B1,B2,NFPA-701 B-S2,do | ||
Product Features
Material: 100% polyester base fabric, strong structure, high load-bearing capacity
Coating Type: Double-sided PVC coating, optional acrylic or PVDF, enhancing durability and protective performance
Fabric Width: Up to 3.2 meters, suitable for large-area coverage
Weight: 900 g/m², thickened and reinforced fabric suitable for heavy-duty applications
Mechanical Performance:
Tensile Strength: Warp 4200 N/5cm, Weft 3800 N/5cm
Tear Strength: Warp 550 N/5cm, Weft 500 N/5cm
Adhesion: 110 N/5cm
Flame Retardant Performance: B1, B2 grades, compliant with NFPA-701 B-S2 standard
Weave: 30×30 Panama structure, further enhancing fabric toughness.
Applications

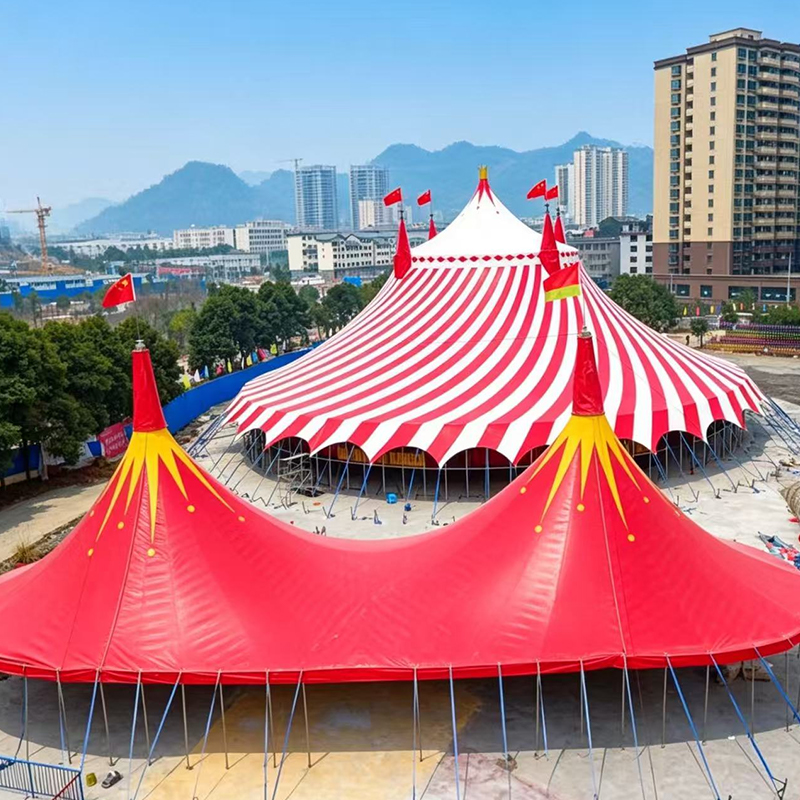

Suitable for heavy-duty outdoor tents, industrial storage tents, large sunshades, protective coverings, and other scenarios requiring extremely high strength and durability.
