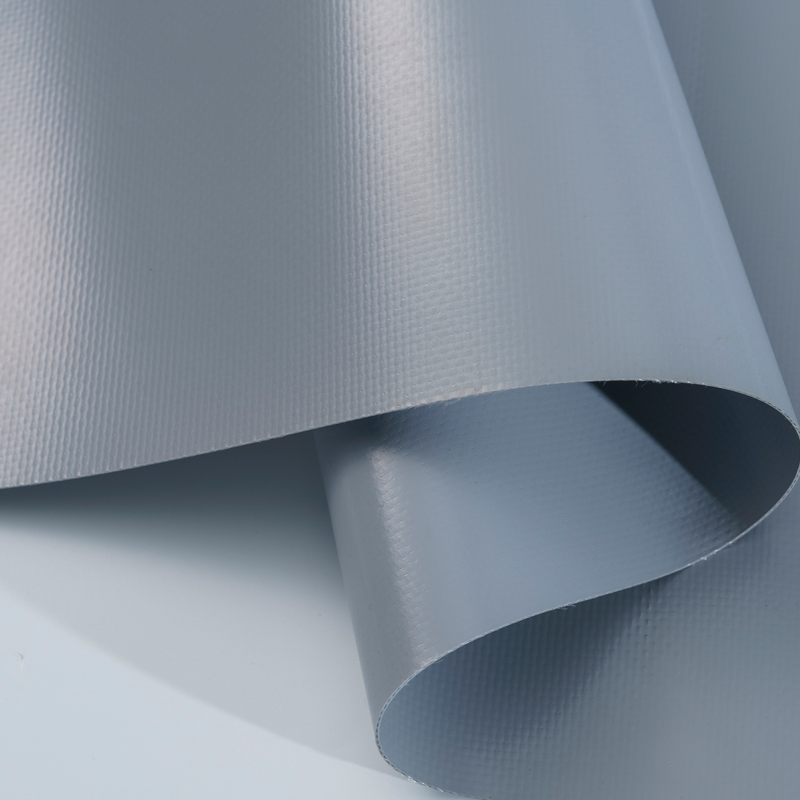

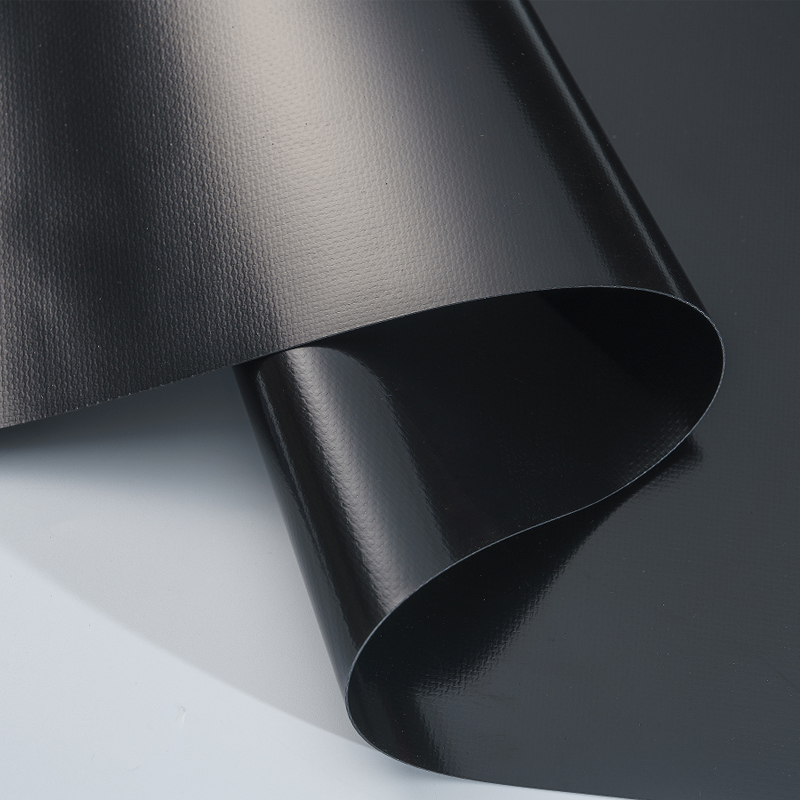

610gsm Reinforced PVC Coated Truck Cover Fabric
Product Overview
610gsm Reinforced PVC Coated Truck Cover Fabric is developed for truck covers and protective coverings where higher fabric strength and tear resistance are required. Different from standard PVC-coated fabrics, this material uses a 1000D × 1300D polyester yarn structure, providing a reinforced woven base that improves load-bearing performance and fabric stability.
- Product Parameter
- Product Details
| Test Items | Unit | Measured Value | Measured Value |
| Support Cloth | -- | 100% Polyester | DIN 6000 |
| Type of Coating | -- | PVC coated on both sides | -- |
| Width | -- | UP TO 3.2m | ( DIN EN ISO 2286-1) |
| Total Weight | g/m2 | 610 | DIN EN ISO 2286-2 |
| Yarn | D | 1000 X 1300 | DIN EN ISO 2060 |
| Specification | inch(plain weave) | 20 X 18 | DIN EN 1049-2 |
| Tensile strength | N/5cm | Warp Direction 3200 | DIN 53354 |
| Transverse Direction 3000 | |||
| Tear strength | N/5cm | Warp Direction 420 | DIN 53356 |
| Transverse Direction 490 | |||
| Adhesion Strength | N/5cm | 110 | ASTM D 751-2000 |
Key Features
Reinforced Yarn Structure for Higher Durability
The fabric adopts a 1000D × 1300D polyester construction, with a stronger yarn configuration compared with conventional 1000D × 1000D fabrics. This reinforced structure helps improve mechanical stability and durability during transportation use.
Excellent Tear Resistance
With tear strength reaching:
Warp: 420 N/5cm
Weft: 490 N/5cm
The fabric provides improved resistance against tearing caused by cargo friction, tension, and repeated handling.
Double-Sided PVC Coating Protection
PVC coating on both sides forms a protective surface layer that helps prevent water penetration and improves resistance to:
Rain and moisture
Dust and dirt
Surface abrasion
Outdoor aging
Balanced Strength and Flexibility
The fabric combines a 610g/m² weight with good tensile performance:
Warp tensile strength: 3200 N/5cm
Weft tensile strength: 3000 N/5cm
It provides a balance between structural strength and processing flexibility for different covering applications.
Suitable for Customized Cover Production
Available in widths up to 3.2m, this reinforced PVC-coated fabric can be processed into different sizes of truck covers, trailer covers, and industrial protection covers.
Applications
610gsm Reinforced PVC Coated Truck Cover Fabric is commonly used for:
Truck covers
Trailer covers
Cargo protection covers
Transportation tarpaulins
Industrial equipment covers
Outdoor protective coverings
