Acrylic Coated PVC Architectural Membrane Fabric
Product Overview
The JT-1050 Acrylic Coated PVC Architectural Membrane Fabric adopts double-sided PVC coating, with a polyester filament base fabric (Polyester 1000×1000D/3032). The fabric has a weight of 1050 g/m², a thickness of approximately 0.80 mm, and a width of up to 3.2 meters. The surface uses an acrylic coating, available in single-sided or double-sided treatment, enhancing weather resistance and aesthetics.
PREV: PVDF Coated PVC Architectural Membrane Fabric
NEXT: Industrial Grade PVDF Architectural Membrane Fabric
- Product Parameter
- Product Details
| Project | Value | Unit | Test method |
| Coating Material | PVC coated on both side | ∕ | ∕ |
| Base fabric | Polyester 1000*1000D/30*32(per inch) |
∕ | DIN EN6001 |
| Weight | 1050 | g/㎡ | DIN EN ISO 2286-2 |
| Thickness | 0.80±0.02 | mm | |
| Width | UP TO 3.2M | / | |
| Tensile Strenght | Warp 4200 | N/5cm | DIN EN ISO1421 DIN53354 |
| Weft 4000 | |||
| Tear Strenght | Warp 600 | N | DIN53363 |
| Weft 500 | |||
| Adhesion Strength | ≥110 | N/5cm | DIN53357 |
| Threshold Temperature | -30~70 | ℃ | DIN EN 1876-1 |
| Surface Treatment | Acrylic ( both sides or one side) | ||
| Flame Retardancy | B1/B2/B3 | GB 8624-2012orDIN4102-1 | |
| Remarks: Optional non-weldable PVDF, acrylic surface treatment, wicking resistance, mildew resistance, etc. Customization is available upon request. | |||
| ※ The above data are test results obtained in accordance with relevant standards, for reference only. Jingtai Company reserves the right of final interpretation. | |||
Core Advantages
Good Strength: Tensile strength in the warp direction is 4200 N/5cm, in the weft direction 4000 N/5cm; tear strength is 600 N in the warp direction and 500 N in the weft direction, ensuring stability during construction and use.
Reliable Adhesion: Peel strength ≥ 110 N/5cm, ensuring firm bonding between the coating and the base fabric.
Wide Temperature Range: Suitable for temperatures from -30°C to 70°C, capable of withstanding various climatic conditions.
Customizable Features: PVDF coating, anti-fouling, and anti-mold treatments can be selected as needed, flexibly meeting different project requirements.
Optional Fire Rating: B1/B2/B3 grades, compliant with building safety standards.
Applications

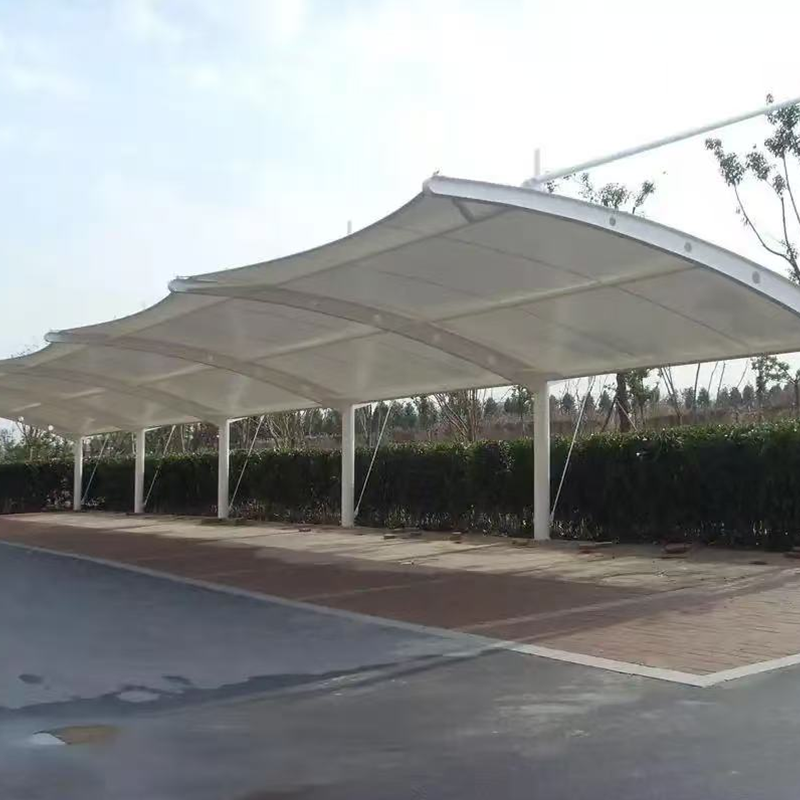

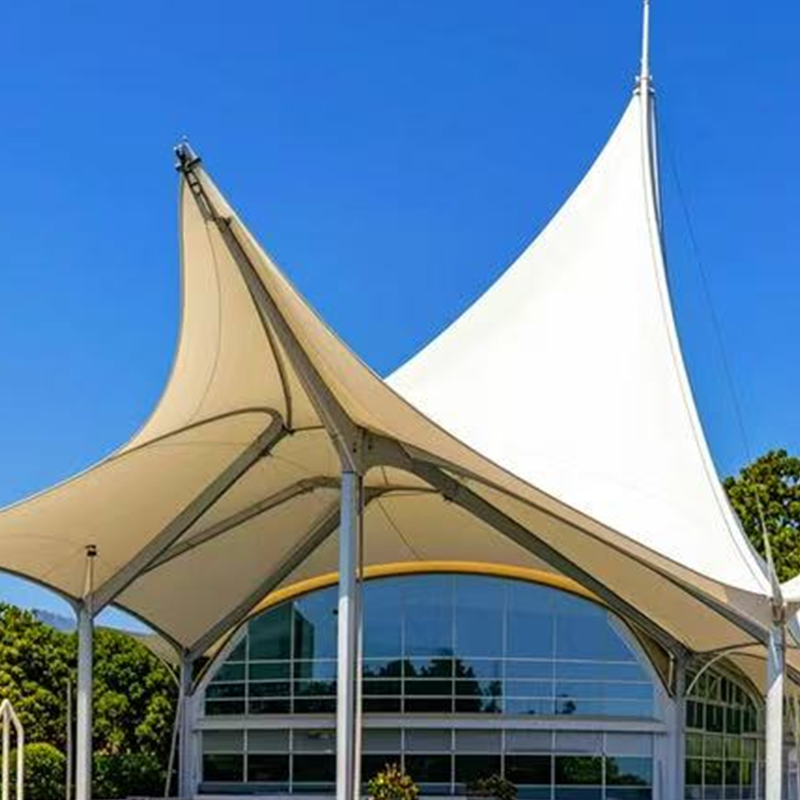

Membrane structure sunshades and exhibition hall membranes
Architectural façade decorative membranes
Temporary coverings and protective uses
Various outdoor waterproof and sunproof facilities
