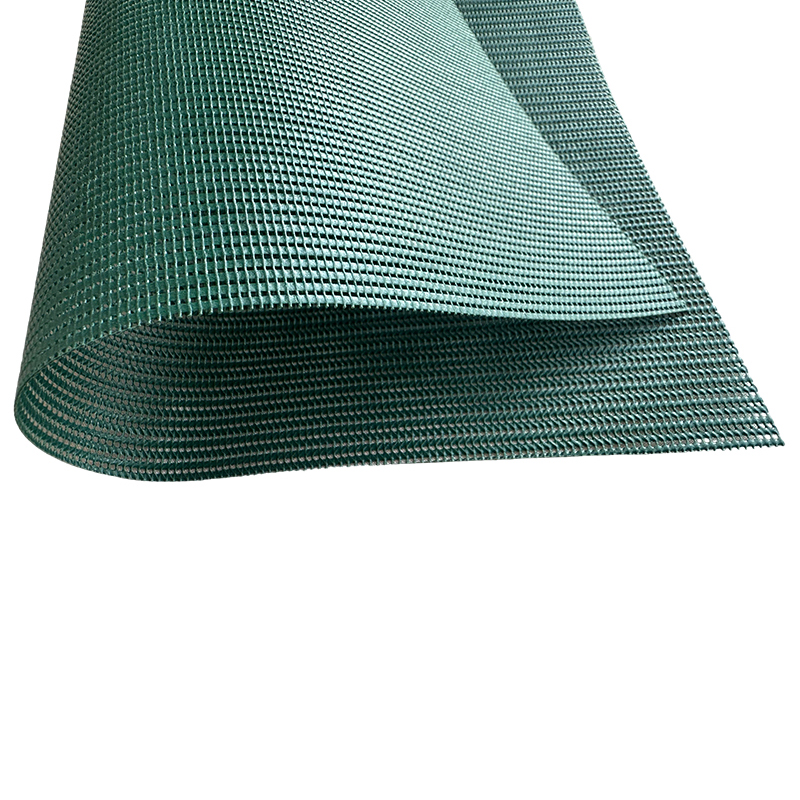

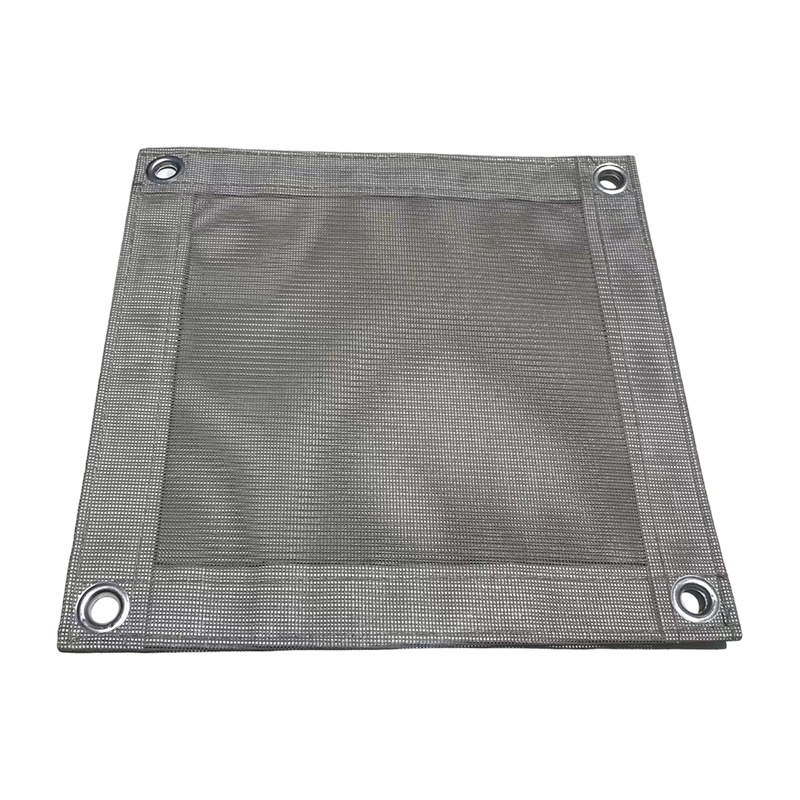

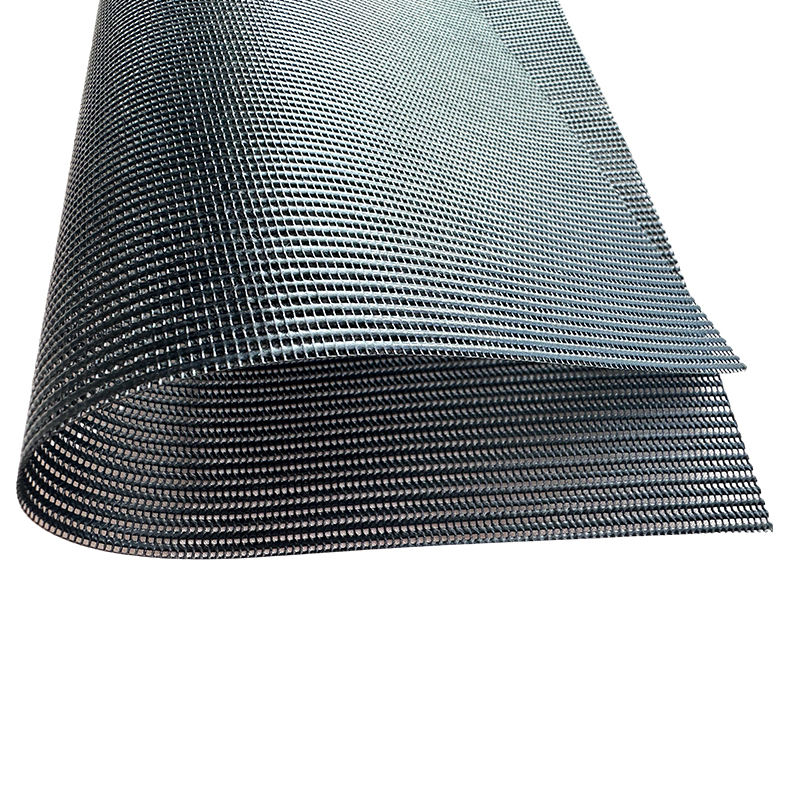

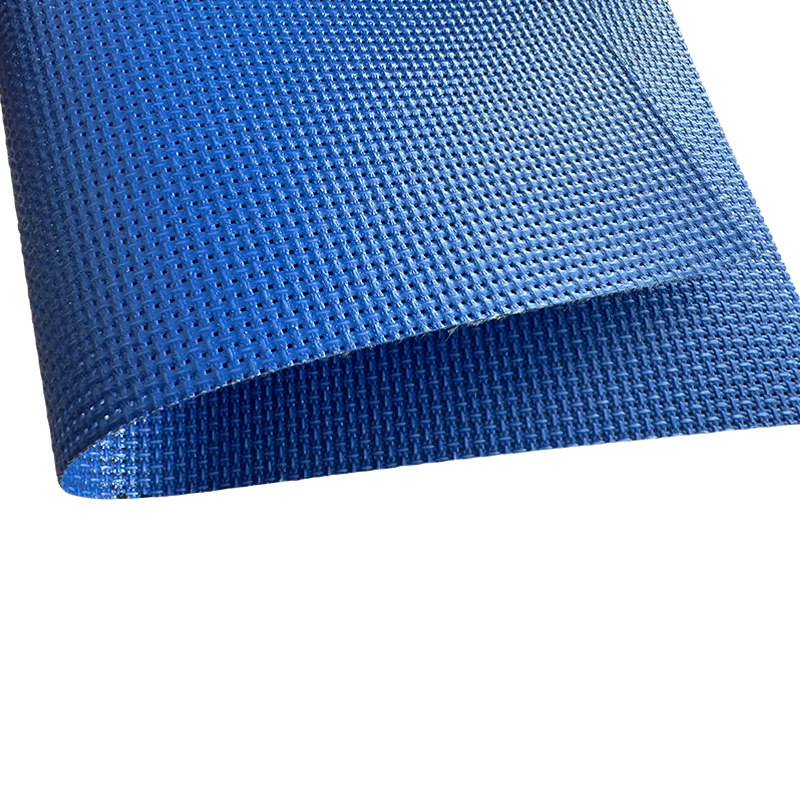

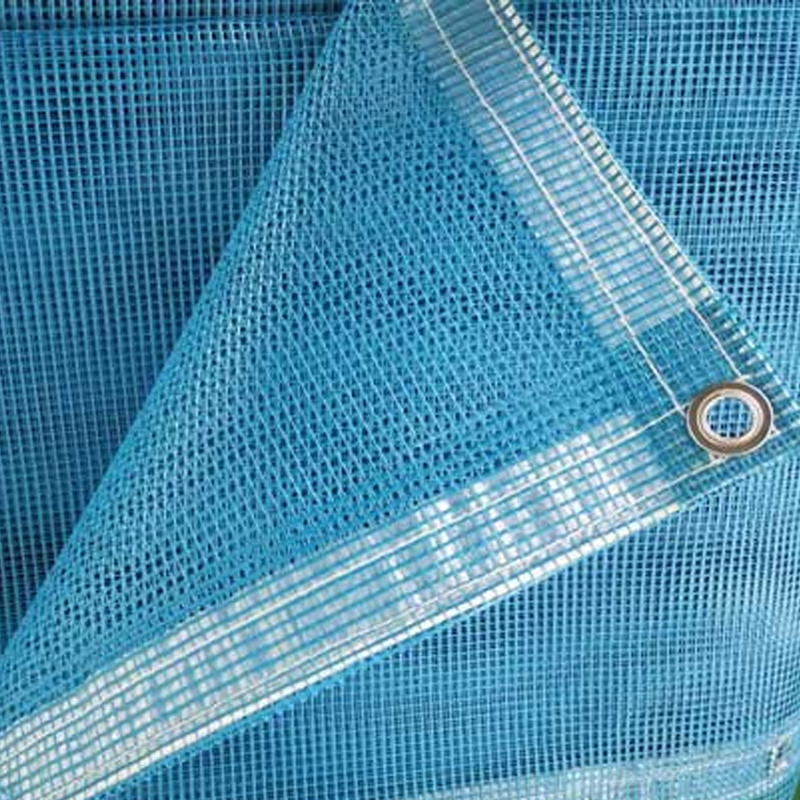

100% Polyester Base Cloth PVC Impregnated Mesh
This product is a functional mesh fabric made from a 100% polyester (woven mesh) base cloth, treated through a PVC (Polyvinyl Chloride) impregnation/coating process. Available in widths up to 3.2 meters and total weights ranging from 130-450 g/m², the fabric can be customized in yarn count and mesh density to suit various applications. It offers excellent weather resistance, abrasion resistance, and structural stability.
- Product Parameter
- Product Details
| Test Item | Unit | Measured Value | Test Method |
| Support Cloth | -- | 100% Polyester | DIN 6000 |
| Type of Coating | -- | PVC -impregnation mesh fabric | -- |
| Width | -- | UP TO 3.2m | ( DIN EN ISO 2286-1) |
| Total Weight | g/m2 | 130--450 | DIN EN ISO 2286-2 |
| Yarn | D | 250/420/500/840/1000 | DIN EN ISO 2060 |
| Specification | inch(plain weave) | 9*9/12*12/18*12/14*14 | DIN EN 1049-2 |
Key Features
High-Strength Base Fabric: Woven from polyester filament yarn, offering high tensile strength and excellent dimensional stability
PVC Impregnation Process: The coating fully penetrates the fabric fibers, ensuring strong adhesion and resistance to delamination
Multiple Options Available: Yarn counts (250D-1000D) and mesh densities available in multiple grades to meet different light/air permeability requirements
Extra-Wide Width: Maximum width of 3.2m reduces seams and improves installation efficiency
Applications
Base fabric for advertising banners/digital printing mesh
Construction safety nets and protective netting
Sun shade nets and dust-proof nets
Outdoor fencing and tarpaulin substrates
Window screens and roller blind mesh fabric
