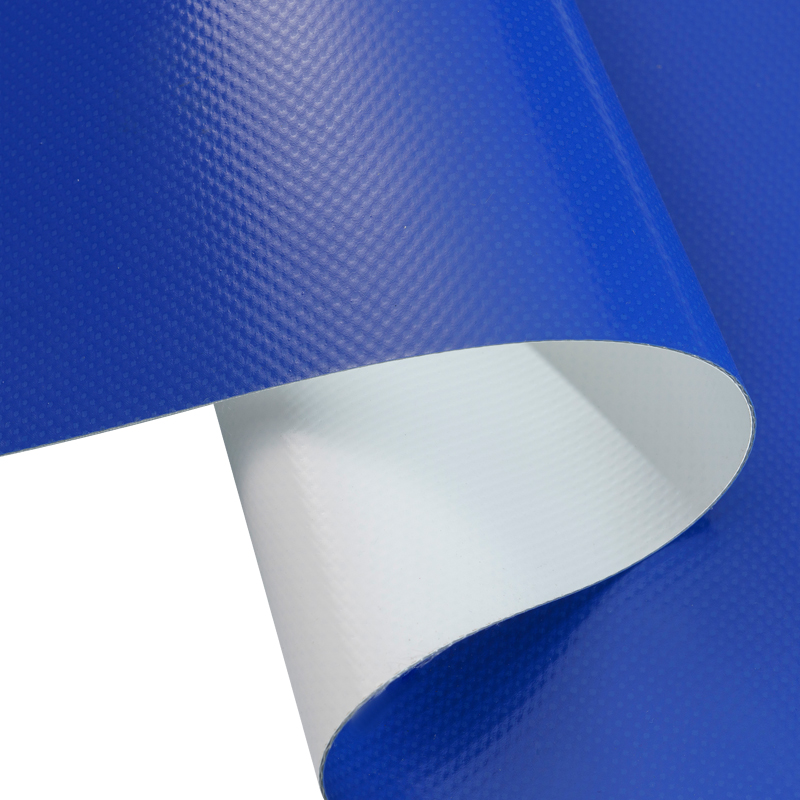

1000D 850gsm High-Strength PVC Coated Fabric for Inflatables

Product Features
Ultra-High-Density Plain Weave
The 23 × 23 yarns/inch weaving specification creates a denser fabric structure than standard grades, effectively improving puncture resistance and abrasion resistance.

High Load-Bearing Tensile Strength
With tensile strengths of 3400 N/5 cm in the warp direction and 2900 N/5 cm in the weft direction, the fabric can support large inflatable structures operating stably under high internal air pressure for extended periods.

Strong Tear Resistance
The fabric provides tear strengths of 350 N/5 cm in the warp direction and 280 N/5 cm in the weft direction, helping prevent damage from accidental scratches or blunt impacts from spreading further.

Stable Coating Adhesion
With a coating adhesion strength of 100 N/5 cm, the PVC coating remains firmly bonded to the base fabric during long-term use, reducing the risk of blistering and delamination.

Heavy-Duty 850g/m² Fabric
Compared with standard grades, the 850 g/m² construction provides greater overall thickness and rigidity, delivering improved resistance to deformation. It is suitable for long-term use in large and heavy-duty inflatable structures.

Wide-Width Construction
With a maximum width of 3.2 m, the fabric helps reduce the number of seams required during fabrication, improving overall airtightness and visual integrity.

Applications
With its higher-density woven structure and enhanced load-bearing performance, this fabric is suitable for large inflatable and emergency equipment requiring high structural strength and long-term durability, including:
Large inflatable arches
Heavy-duty flexible barrier dams
Large-span inflatable water bags
Professional rescue air cushions
Large inflatable structures
Emergency rescue and response equipment
Recreational and commercial inflatable equipment
